Features: |
|
| |
- One person, push
button operation.
- Emits eye-safe
visible red laser light.
- Separate laser diodes
produce bright and sharp laser reference lines.
- Use laser
"cross" and/or 90° plumb line.
- Heavy duty
magnetically dampened compensator eliminates
error by self-leveling the lasers.
- Broad ±5°
self-leveling range.
- "Out of leveling
range" sensor triggers an automatic shut-off
mechanism to ensure accurate results.
- Includes custom
padded carrying case, wall/tripod mount with
5/8" x 11 mounting thread, batteries, and
instruction manual.
|
|
| |
|
|
| |

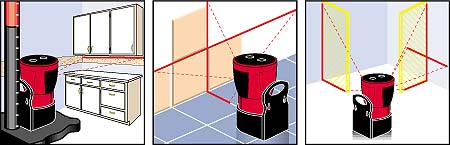

Uses: |
|
| |
 |
|
| |
Use for leveling,
aligning cabinets, wallpaper borders, floor and wall
tiles, walls and partitions... |
|
| |
|
|
| |
Specifications: |
|
| |
Accuracy:
- Leveling:
1/8" at 30' (3mm at 9m).
- Horizontal/Vertical
Line (end to end): ±1/16" at 10'
(±1.5mm at 3m).
- 90°
Reference (Vertical), Gizmo III:
1/8" at 30' (3mm at 9m).
Line Length: Approx.
45' at 30' (14m at 10m) target distance.
Working Range: Up to
32' (10m).
Laser Diode: 635nm.,
three diodes.
Fan Angle: 60°,
Horizontal & Vertical.
Self-Leveling Range:
±5°.
Self-Leveling Speed:
3 seconds or less.
Weight: Instrument
& Mount, 1.8 lbs. (0.9kg); Carrying Case, 0.7
lbs. (0.3kg).
Power: Three
"AA" alkaline cells.
Battery Life:
Continuous use at 68°F (20°C), variable in
colder temperatures:
- 1 diode on,
25 hours.
- 2 diodes on,
20 hours.
- 3 diodes on,
15 hours.
|
|
